Figure 4 script#
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
import matplotlib as mpl
from carst.libdhdt import DemPile
import numpy as np
from datetime import datetime, timedelta
from carst.libdhdt import wl_reg as wlr
from carst.libdhdt import sigmoid_reg as smr
from carst.libdhdt import gp_reg as gpr
from sklearn.gaussian_process.kernels import ConstantKernel
from sklearn.gaussian_process.kernels import RationalQuadratic
from matplotlib.patches import BoxStyle
def load_data(datafolder):
carst_inipath = datafolder + '/defaults.ini'
pile = DemPile()
pile.read_config(carst_inipath)
pile.picklepath = datafolder + '/' + pile.picklepath
pile.load_pickle()
return pile
def read_single_pixel(pile, row=0, col=0, evmd_threshold=20, min_samples=3):
exitstate, evmd_lbl = pile.ts[row, col].do_evmd(eps=evmd_threshold, min_samples=min_samples)
bitmask_lbl = pile.ts[row, col].bitmask_labels
good_idx = np.logical_and(bitmask_lbl == 0, evmd_lbl >= 0)
arr = pile.ts[row, col]
x = arr.get_date()
y = arr.get_value()
ye = arr.get_uncertainty()
x_date = np.array([pile.refdate + timedelta(days=i) for i in x])
return arr, evmd_lbl, bitmask_lbl, good_idx, x, y, ye, x_date
def plot_regression(pile, x, y, ye, x_date, good_idx, ax=None, which='wlr', downward_first=True):
if ax is None:
_, ax = plt.subplots(1, 1)
ax.errorbar(x_date, y, yerr=ye * 2, linewidth=2, fmt='k.')
x_good = x[good_idx]
y_good = y[good_idx]
ye_good = ye[good_idx]
if which == 'wlr':
x_pred, y_pred, slope, slope_stderr, duration, exitstate = wlr(x_good, y_good, ye=ye_good)
elif which == 'smr':
k_bounds = [10, 150]
x_pred, y_pred, sigmoid_height, sigmoid_height_stderr, sigmoid_timing, exitstate = smr(x_good, y_good, ye=ye_good, k_bounds=k_bounds, downward_first=downward_first)
elif which == 'gpr':
gp_kernel = ConstantKernel(constant_value=1, constant_value_bounds=[0.03, 30]) * RationalQuadratic(
length_scale=0.4, alpha=0.01, alpha_bounds='fixed', length_scale_bounds='fixed')
x_pred, y_pred, y_pred_std, max_transient_dh, max_transient_dh_stderr, max_transient_timing, exitstate, actual_kernel = gpr(
x_good, y_good, ye=ye_good, kernel=gp_kernel, return_ystd=True)
else:
print('WARNING')
# ax.set_title(f'dh/dt (2-sigma) = {slope:.2f}±{2 * slope_stderr:.2f} m/yr' )
x_pred_date = [pile.refdate + timedelta(days=i) for i in x_pred]
ax.plot(x_pred_date, y_pred, color='g', linewidth=2, zorder=20)
x_good_date = [pile.refdate + timedelta(days=i) for i in x_good]
square_handle = ax.plot(x_good_date, y_good, 's', color='k', markersize=7, zorder=5)
return square_handle
def plot_data_quality(x_date, y, good_idx, ax=None):
"""
Two-colored version:
Lilac square: Good data
Yellow circle: Suboptimal data
"""
if ax is None:
_, ax = plt.subplots(1, 1)
colorcodes = ['xkcd:lilac', 'xkcd:yellow']
comments = ['Good', 'Suboptimal']
# selected_group_index = good_idx == 1
lilac_handle = ax.plot(x_date[good_idx], y[good_idx], '.', color=colorcodes[0],
markersize=12, markeredgewidth=1, markeredgecolor='k', zorder=10, label=comments[0])
# selected_group_index = good_idx != 1
yellow_handle = ax.plot(x_date[~good_idx], y[~good_idx], '.', color=colorcodes[1],
markersize=12, markeredgewidth=1, markeredgecolor='k', zorder=11, label=comments[1])
return lilac_handle, yellow_handle
def plot_arcticdem_bitmask(x_date, y, bitmask_lbl, ax=None):
"""
Not used. Two-colored version.
"""
if ax is None:
_, ax = plt.subplots(1, 1)
bitmask_colorcodes = ['xkcd:lilac', 'xkcd:yellow']
bitmask_comments = ['Good', 'Suboptimal']
selected_group_index = bitmask_lbl == 0
ax.plot(x_date[selected_group_index], y[selected_group_index], '.', color=bitmask_colorcodes[0],
markersize=12, markeredgewidth=1, markeredgecolor='k', zorder=10, label=bitmask_comments[0])
selected_group_index = bitmask_lbl != 0
ax.plot(x_date[selected_group_index], y[selected_group_index], '.', color=bitmask_colorcodes[1],
markersize=12, markeredgewidth=1, markeredgecolor='k', zorder=11, label=bitmask_comments[1])
def format_fn(tick_val, tick_pos):
datetime_obj = mdates.num2date(tick_val)
if datetime_obj.year % 2 == 1:
return datetime_obj.strftime('%Y')
else:
return ''
def plot_adjustments(ax):
ax.xaxis.set_major_locator(mdates.YearLocator())
ax.xaxis.set_major_formatter(format_fn)
# ax.xaxis.set_minor_locator(mdates.MonthLocator())
plt.setp(ax.get_xticklabels(), rotation=-90, ha='center')
ax.grid(axis='both', linestyle='--', color='xkcd:light grey')
ax.tick_params(length=6)
# ax.set_xlabel('pixel location = [{}, {}]'.format(row, col))
# ax.set_ylabel('height (m)')
axes_settings = {'linewidth' : 1.5}
mpl.rc('axes', **axes_settings)
font_settings = {'size' : 13}
mpl.rc('font', **font_settings)
data_list = [['../JolliffeNArm', {'row': 738, 'col': 328, 'evmd_threshold': 20, 'min_samples': 3}],
['../TaggartLake', {'row': 922, 'col': 1409, 'evmd_threshold': 20, 'min_samples': 3}],
['../PennyW', {'row': 1553, 'col': 732, 'evmd_threshold': 20, 'min_samples': 3}],
['../AgassizSWMinor1', {'row': 153, 'col': 345, 'evmd_threshold': 20, 'min_samples': 3}],
['../MittieMain', {'row': 663, 'col': 552, 'evmd_threshold': 20, 'min_samples': 3}],
['../UnnamedHSE', {'row': 250, 'col': 459, 'evmd_threshold': 20, 'min_samples': 3}],
['../GoodFriday', {'row': 562, 'col': 803, 'evmd_threshold': 20, 'min_samples': 3}],
['../OttoN', {'row': [411, 362], 'col': [202, 247], 'evmd_threshold': 20, 'min_samples': 3}],
]
pile_data = []
for (datafolder, _) in data_list:
pile_data.append(load_data(datafolder))
ylim_adjustment = [[582, 655], [1010, 1065], [845, 960], [885, 907], [70, 290], [580, 710], [370, 425]]
reg_mode = ['wlr', 'wlr', 'smr', 'smr', 'gpr', 'gpr', 'gpr']
fig, axs = plt.subplots(5, 2, figsize=(9, 9), sharex=True, gridspec_kw={'height_ratios': [1, 1, 1, 1, 1]})
fig.subplots_adjust(wspace=0.04, hspace=0.04, left=0.1, right=0.9, top=0.91, bottom=0.03)
axs_flat = axs.flatten()
axs[0, 0].tick_params(top=True, labeltop=True)
axs[0, 1].tick_params(top=True, labeltop=True)
for idx, (_, read_pixel_args) in enumerate(data_list[:7]):
arr, evmd_lbl, bitmask_lbl, good_idx, x, y, ye, x_date = read_single_pixel(pile_data[idx], **read_pixel_args)
ax_select = axs_flat[idx]
plot_regression(pile_data[idx], x, y, ye, x_date, good_idx, ax=ax_select, which=reg_mode[idx])
plot_data_quality(x_date, y, good_idx, ax=ax_select)
plot_adjustments(ax_select)
ax_select.set_ylim(*ylim_adjustment[idx])
gs = axs[3, 1].get_gridspec()
axs[3, 1].remove()
axs[4, 0].remove()
axs[4, 1].remove()
sub_gs2 = gs[3:, 1].subgridspec(4, 1, hspace=0, height_ratios=[0.4, 1, 1, 1])
syngroup21 = fig.add_subplot(sub_gs2[1, 0], sharex=axs_flat[0])
syngroup22 = fig.add_subplot(sub_gs2[2, 0], sharex=axs_flat[0])
read_pixel_args = data_list[7][1]
ylim_adjustment_3 = [[720, 790], [720, 790]]
for idx, ax_select in enumerate([syngroup21, syngroup22]):
corrected_read_pixel_args = {'row': read_pixel_args['row'][idx],
'col': read_pixel_args['col'][idx],
'evmd_threshold': 20,
'min_samples': 3}
arr, evmd_lbl, bitmask_lbl, good_idx, x, y, ye, x_date = read_single_pixel(pile_data[7], **corrected_read_pixel_args)
# print(arr)
square_handle = plot_regression(pile_data[idx], x, y, ye, x_date, good_idx, ax=ax_select, which='smr')
lilac_handle, yellow_handle = plot_data_quality(x_date, y, good_idx, ax=ax_select)
plot_adjustments(ax_select)
ax_select.set_ylim(*ylim_adjustment_3[idx])
for ax_select in axs[:4, 1]:
ax_select.tick_params(left=False, labelleft=False, right=True, labelright=True) # , width=1.5)
for ax_select in [syngroup21, syngroup22]:
ax_select.tick_params(left=False, labelleft=False, right=True, labelright=True) # , width=1.5)
axs[3, 0].tick_params(labelbottom=True) # , width=1.5)
syngroup21.tick_params(labelbottom=False, top=True)
axs[0, 0].set_xlim(datetime(2011, 1, 1), datetime(2021, 12, 31))
axs[2, 0].set_ylabel('Ice surface elevation (m)')
axs[2, 1].set_ylabel('Ice surface elevation (m)')
axs[2, 1].yaxis.set_label_position("right")
axs_flat[0].text(0.03, 0.95, '(a) Steady recharge \n (#31)', ha='left', va='top', backgroundcolor='w', transform=axs_flat[0].transAxes)
axs_flat[1].text(0.03, 0.05, '(b) Steady drainage \n (#7)', ha='left', va='bottom', backgroundcolor='w', transform=axs_flat[1].transAxes)
axs_flat[2].text(0.45, 0.95, '(c) Active drainage, \n steady recharge (#17)', ha='left', va='top', backgroundcolor='w', transform=axs_flat[2].transAxes)
axs_flat[3].text(0.45, 0.95, '(d) Active drainage, \n no recharge (#6)', ha='left', va='top', backgroundcolor='w', transform=axs_flat[3].transAxes)
axs_flat[4].text(0.03, 0.05, '(e) Most significant \n active drainage, \n Mittie glacier (#14)', ha='left', va='bottom', backgroundcolor='w', transform=axs_flat[4].transAxes)
axs_flat[5].text(0.03, 0.95, '(f) Two cycles (#11)', ha='left', va='top', backgroundcolor='w', transform=axs_flat[5].transAxes)
axs_flat[6].text(0.03, 0.95, '(g) Many cycles (#26)', ha='left', va='top', backgroundcolor='w', transform=axs_flat[6].transAxes)
syngroup21.text(0.5, 1.1, '(h) Synchronized', ha='center', va='bottom', backgroundcolor='w', transform=syngroup21.transAxes)
syngroup21.text(0.03, 0.1, '#4-a', ha='left', va='bottom', backgroundcolor='w', transform=syngroup21.transAxes)
syngroup22.text(0.03, 0.1, '#4-b', ha='left', va='bottom', backgroundcolor='w', transform=syngroup22.transAxes)
syngroup22.legend([(square_handle[0], lilac_handle[0]), yellow_handle[0]], ["Good", "Suboptimal"], title='ArcticDEM data quality', bbox_to_anchor=(0.25, 0.06), loc="lower center", bbox_transform=fig.transFigure)

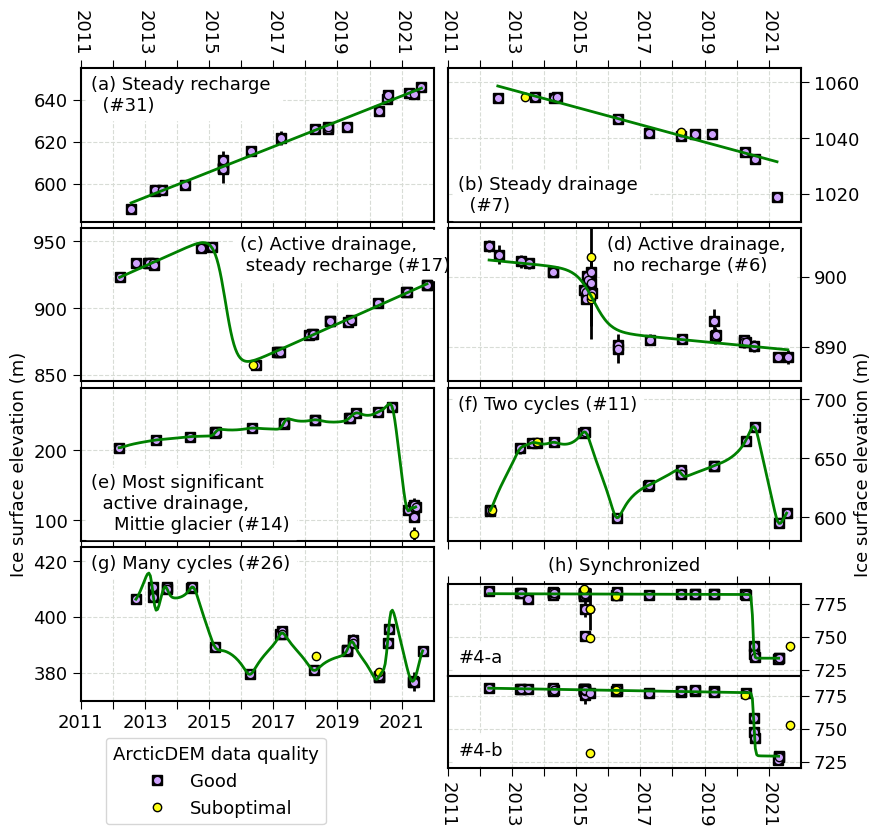

fig.savefig('temporal_patterns-v2.png', dpi=150)
fig.savefig('temporal_patterns-v2.pdf', dpi=150)
/usr/local/lib/python3.10/dist-packages/sklearn/gaussian_process/_gpr.py:629: ConvergenceWarning: lbfgs failed to converge (status=2):
ABNORMAL_TERMINATION_IN_LNSRCH.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
_check_optimize_result("lbfgs", opt_res)
